Dynamic changes of lymphocyte differentiation and programmed cell death protein ligand 1 expression in mice infected with Schistosoma japonicum

Abstract

Abstract:

Objective To evaluate the effect of Schistosoma japonicum infection on the lymphocyte differentiation and the programmed cell death protein ligand 1 （PD-L1） expression in infected mice. Methods Thirty BALB/c mice were randomly divided into infected group and uninfected groups. Mice in infected group were each infected with 20 ± 2 cercariae through abdominal skin. Three mice from each group were euthanized before infection and 2, 4, 6, 8, 10 weeks after infection and the lymphocytes were isolated from livers and spleens. The dynamic changes of the lymphocyte proportions for CD3⁺ T cells (CD3⁺CD19^-), CD19⁺ B cells (CD3^-CD19⁺), CD4⁺ T cells (CD3⁺CD19^-CD4⁺CD8^-) and CD8⁺ T cells(CD3⁺CD19^-CD4^-CD8⁺) and PD-L1 expression on these subset cells were detected by flow cytometry. The differences between groups were statistically analyzed by ANOVA test. Results Both in liver and spleen, the lymphocyte populations of CD3⁺ T cells, CD19⁺ B cells and CD4⁺ T subsets, decreased significantly in mice infected with S. japonicum for 4-8 weeks compared to the populations before infection (P < 0.05, 0.01 or P > 0.05). However, in livers of mice infected with S. japonicum, the population of CD8⁺ T cell subset at 6 week [(38.03 ± 7.41)%] after infection was significantly higher than uninfected group [(23.37 ± 3.98)%]（P < 0.01）, but no significant change in spleen. More interestingly, the expression of PD-L1 on CD19⁺ B cells at 6 week [(7.25 ± 3.47)%] after infection with S. japonicum was significantly inhibited compared with the uninfected group [(22.77 ± 8.90)%] (P < 0.01) while the changes in spleen was later than that in liver, at 8 week[(22.37±4.01)%] after infection was significantly inhibited compared with the uninfected group[(51.97 ± 1.62)%] (P < 0.01) and remained at low level thereafter, in both liver and spleen. The expression of PD-L1 on CD3⁺ T and CD4⁺ T cells in liver during 2 to 10 weeks (P < 0.05, 0.01 or P > 0.05) and in spleen during 4 to 8 weeks after infection was lower than that of the uninfected group (P <0.05). The expression of PD-L1 on CD8⁺ T cells in both liver and spleen was not changed at the early infection stage, but increased significantly at 10 weeks [(34.80 ± 3.68)%, (31.90 ± 2.53)%] after infection compared to the level before infection [(25.5 ± 0.80)%, (29.91 ± 3.55)%] (P < 0.01). Conclusion The lymphocyte proportion of CD19⁺ B, CD3⁺ T and CD4⁺ T cells were induced to decrease significantly in livers and spleens of mice infected with S. japonicum, however, the change in CD8⁺ T cell proportion was not significant in comparison to the level before infection. Similar trend was observed in PD-L1 expression on these lymphocyte subsets with significant decrease on CD19⁺ B, CD3⁺ T and CD4⁺ T lymphocytes, but significant increase on CD8⁺ T cells at later infection stage. These changes of lymphocytes in liver occur earlier than that in spleen.

Key words: Schistosoma japonicum, BALB/c mice, Lymphocyte, Flow cytometry, PD-L1

CLC Number:

R383.24

Xiao-ling WANG, Yuan HU, Yu-xin XU, Hua LIU, Jian-ping CAO. Dynamic changes of lymphocyte differentiation and programmed cell death protein ligand 1 expression in mice infected with Schistosoma japonicum[J]. CHINESE JOURNAL OF PARASITOLOGY AND PARASITIC DISEASES, 2018, 36(6): 579-585.

Figures/Tables 4

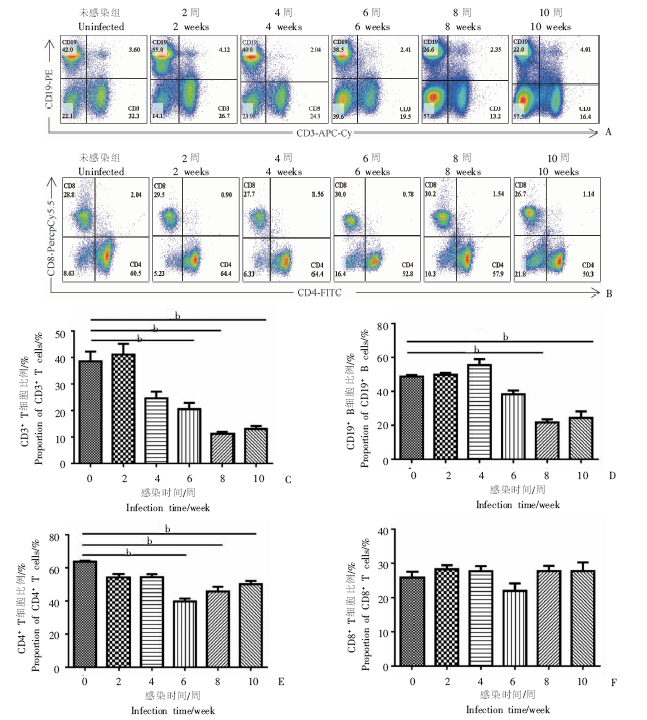

Fig. 1

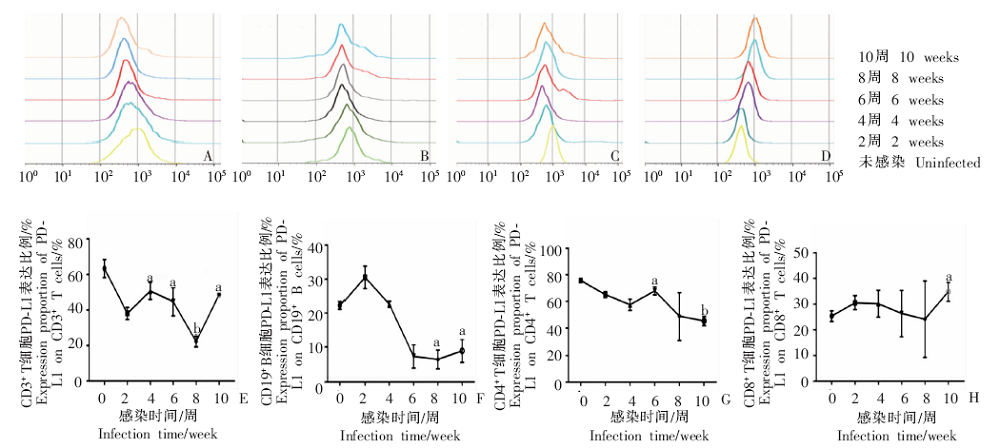

Fig. 2

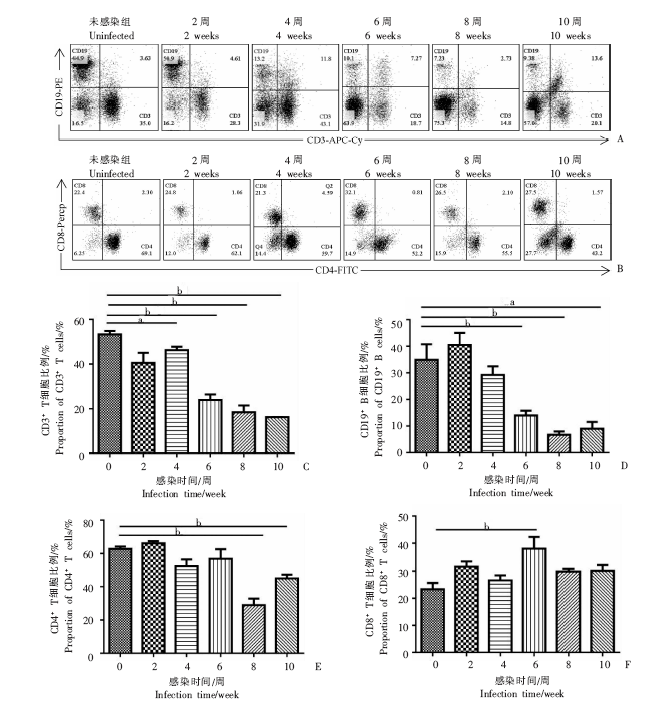

Fig. 3

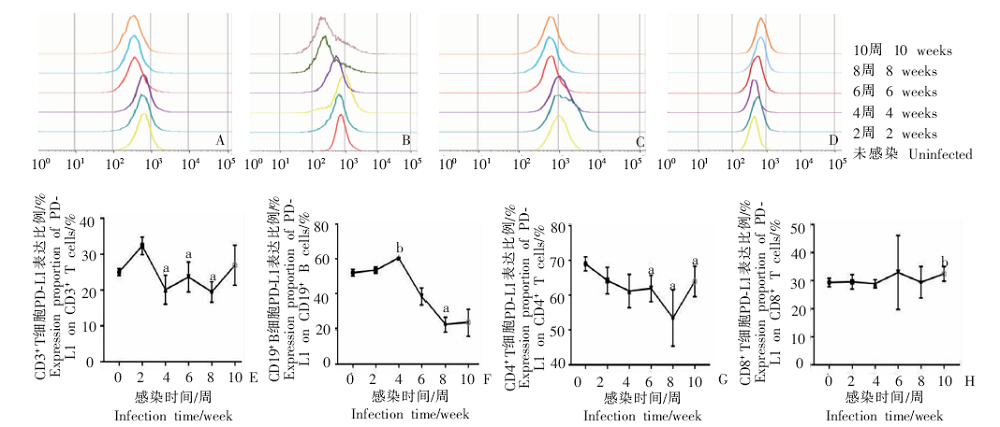

Fig. 4

References 18

[1]	Colley DG, Bustinduy AL, Secor WE, et al. Human schistosomiasis[J]. Lancet, 2014, 383(9936): 2253-2264.
[2]	张利娟, 徐志敏, 钱颖骏, 等. 2016年全国血吸虫病疫情通报[J]. 中国血吸虫病防治杂志, 2017, 29(6): 669-677.
[3]	de Oliveira FL, Carneiro K, Brito JM, et al. Galectin-3, histone deacetylases, and Hedgehog signaling: possible convergent targets in schistosomiasis-induced liver fibrosis[J]. PLoS Negl Trop Dis, 2017, 11(2): e0005137.
[4]	Hsu CK, Hsu SH, Whitney RA Jr, et al. Immunopathology of schistosomiasis in athymic mice[J]. Nature, 1976, 262(5567): 397-399.
[5]	Wilson MS, Mentink-Kane MM, Pesce JT, et al. Immunopathology of schistosomiasis[J]. Immunol Cell Biol, 2007, 85(2): 148-154.
[6]	Schwartz C, Oeser K, Prazeres da Costa C, et al. T cell-derived IL-4/IL-13 protects mice against fatal Schistosoma mansoni infection independently of basophils[J]. J Immunol, 2014, 193(7): 3590-3599.
[7]	王燕娟, 沈玉娟, 徐馀信, 等. 免疫组化法观察日本血吸虫感染破坏小鼠脾脏淋巴滤泡结构[J]. 中国血吸虫病防治杂志, 2017, 29(4): 468-470.
[8]	Wimberly H, Brown JR, Schalper K, et al. PD-L1 Expression correlates with tumor-infiltrating lymphocytes and response to neoadjuvant chemotherapy in breast cancer[J]. Cancer Immunol Res, 2015, 3(4): 326-332.
[9]	Cha E, Wallin J, Kowanetz M.PD-L1 inhibition with MPDL3280A for solid tumors[J]. Semin Oncol, 2015, 42(3): 484-487.
[10]	Kim JW, Eder JP.Prospects for targeting PD-1 and PD-L1 in various tumor types[J]. Oncology (Williston Park, NY), 2014, 28(Suppl 3): 15-28.
[11]	Zheng L, Hu Y, Wang Y, et al. Recruitment of neutrophils mediated by Vγ2 γδ T cells deteriorates liver fibrosis induced by Schistosoma japonicum infection in C57BL/6 mice[J]. Infect Immun, 2017, 85(8): e01020-16.
[12]	瞿秋霞. 负性共刺激分子PD-L1在卵巢癌免疫逃逸中的作用及其机制[D]. 苏州: 苏州大学, 2015.
[13]	陈陆俊, 孙静, 张学光. PD-1/PD-L1信号途径在肿瘤免疫逃逸机制中的作用[J]. 中国肿瘤生物治疗杂志, 2008, 15(3): 289-291,295.
[14]	Latchman YE, Liang SC, Wu Y, et al. PD-L1-deficient mice show that PD-L1 on T cells, antigen-presenting cells, and host tissues negatively regulates T cells[J]. Proc Natl Acad Sci USA, 2004, 101(29): 10691-10696.
[15]	周晓红, 陈晓光, 冯明钊, 等. 日本血吸虫成虫及虫卵可溶性抗原的早期诊断分子筛选[J]. 寄生虫与医学昆虫学报, 2000, 7(1): 27-32.
[16]	罗雪平, 袁南贵, 黄俊. 可溶性虫卵抗原和成虫抗原刺激日本血吸虫感染小鼠肠系膜淋巴结Th17细胞的免疫应答[J]. 中国寄生虫学与寄生虫病杂志, 2017, 35(2): 105-109.
[17]	Fallon PG, Smith P, Dunne DW.Type 1 and type 2 cytokine-producing mouse CD4+ and CD8+ T cells in acute Schistosoma mansoni infection[J]. Eur J Immunol, 1998, 28(4): 1408-1416.
[18]	张萃, 陈晓军, 朱继峰, 等. 日本血吸虫可溶性成虫抗原和虫卵抗原对CD4+ T淋巴细胞凋亡和细胞周期的影响[J]. 中国血吸虫病防治杂志, 2010, 22(1): 13-16.
