Fusion expression and identification of B cell epitopes of Toxoplasma gondii surface antigens（SAG）1 and 2

Abstract

Abstract:

Objective To construct the prokaryotic expression system for B cell epitopes of Toxoplasma gondii surface antigens（SAG）1 and 2, and analyze their immunoreactivity.Methods The B cell epitope sequences of Toxoplasma gondii SAG1 and SAG2 were designed and synthesized according to the gene sequences of SAG1 and SAG2 published in GenBank.The target gene was subcloned into pET-28a(+), and expressed in Escherichia coli BL21 (DE3).Complete single colonies were then selected from LB medium containing kanamycin.After culture under shaking to an absorbance(A₄₅₀) value of 0.6-0.8, IPTG was added at a final concentration of 1 mmol/L to induce expression of the target gene.To obtain high concentrations of recombinant SAG(rSAG), the rSAG protein was purified using a His fusion protein purfication kit, and the resultant His-tagged purified protein was identified by Western blotting and ELISA.Results of PCR and double-enzyme digestion showed a specific protein band at ~909 bp.As expected, sequencing of the band further confirmed the construction of rSAG.SDS-PAGE revealed the rSAG molecular weight(M_r) of ~50 000.Western blotting showed specific binding of rSAG with a 1 ∶ 100 dilution of T.gondii-positive mouse serum.ELISA results showed a most positive reaction with the dilution of 1 ∶ 1 for recombinant protein and the dilution of 1 ∶ 50 for positive serum.Moreover, reactions between different dilutions of rSAG and different concentrations of T.gondii-positive mouse serum, and a good performance in distinguishing negative from positive serum.Conclusion The constructed recombinant protein rSAG is soluble and has good immunoreactivity.

Key words: Toxoplasma gondii, Antigen epitopes, Recombination sequence, Immune reactivity

CLC Number:

R382.5

Zhao-zhe WANG, Rui XU, Yang HONG, Jiao-jiao LIN, Ke LU, Hao LI, Zhao-guo CHEN, Yao-jun SHI, Si-min WU, Jia-xin JIANG, Jia-jing LI, Chuan-gang ZHU. Fusion expression and identification of B cell epitopes of Toxoplasma gondii surface antigens（SAG）1 and 2[J]. CHINESE JOURNAL OF PARASITOLOGY AND PARASITIC DISEASES, 2017, 35(6): 575-579.

Figures/Tables 5

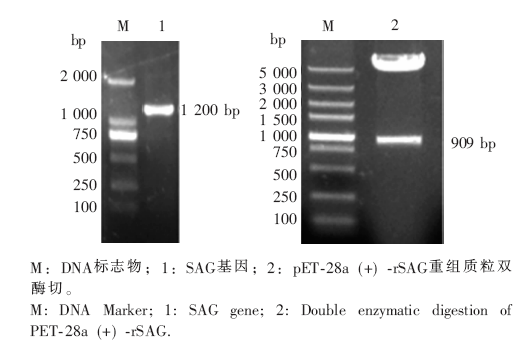

Fig.1

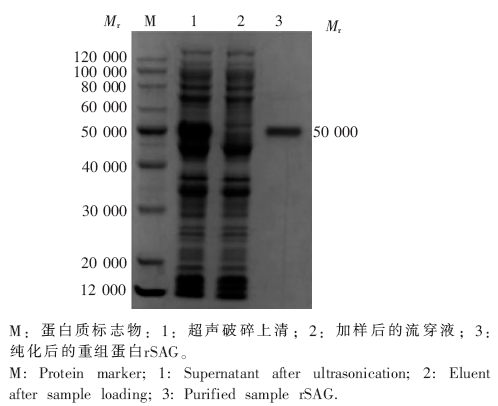

Fig.2

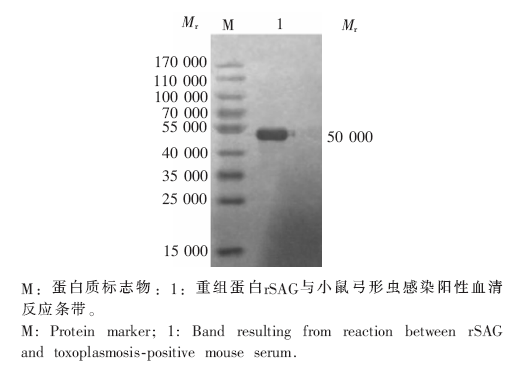

Fig.3

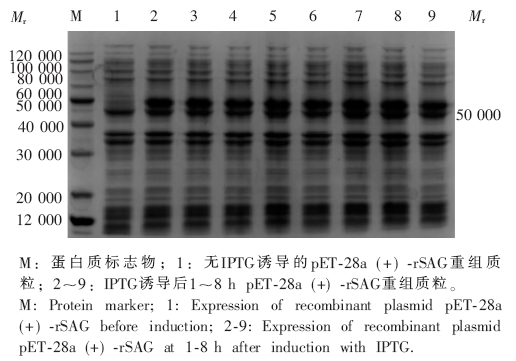

Fig.4

Table 1

References 13

[1]	李倩, 张莉, 李海龙.非人灵长类弓形虫病研究进展[J].中国人兽共患病学报, 2014, 30(5): 516-520.
[2]	王燕娟, 曹建平, 孙雅雯, 等.荧光蛋白报告载体观察刚地弓形虫SAGl、 MIC3、 ROP2鸡尾酒DNA疫苗的表达及其免疫原性的研究[J].中国寄生虫学与寄生虫病杂志, 2015, 33(5): 368-371.
[3]	Lyons RE, Lyons K, McLeod R, et al.Construction and validation of a polycompetitor construct (SWITCH) for use in competitive RT-PCR to assess tachyzoite-bradyzoite interconversion in Toxoplasma gondii[J].Parasitology, 2001, 123(Pt 5): 433-439.
[4]	赵焕阁, 范志刚, 黄风迎, 等.弓形虫复合基因疫苗pcSAG1-ROG5诱导小鼠免疫应答的研究[J].中国寄生虫学与寄生虫病杂志, 2013, 31(1): 1-5.
[5]	黄支密, 陆亚华, 诸葛青云, 等.多重耐药MRSA耐消毒剂基因及抗生素耐药相关基因检测[J].中国抗生素杂志, 2005, 30(5): 270-273.
[6]	卢圣栋.现代分子生物学实验技术[M].2版.北京: 中国协和医科大学出版社, 1999: 115-116.
[7]	Selseleh MM, Keshavarz H, Mohebali M, et al. Production and evaluation of Toxoplasma gondii recombinant surface antigen 1 (SAG1) for serodiagnosis of acute and chronic Toxoplasma infection in human sera[J].Iran J Parasitol, 2012, 7(3): 1-9.
[8]	杨培梁, 李华, 周晓红, 等.弓形虫多表位基因重组抗原在弓形虫免疫检测中的应用[J].热带医学杂志, 2007, 7(9): 853-855.
[9]	Drapaa D, Holec-Gasior L, Kur J, et al. A new human IgG avidity test, using mixtures of recombinant antigens (rROP1, rSAG2, rGRA6), for the diagnosis of difficult-to-identify phases of toxoplasmosis[J].Diagn Microbiol Infect Dis, 2014, 79(3): 342-346.
[10]	何勇, 周鹏, 尹创成, 等.弓形虫主要表面抗原的研究进展[J].畜牧与兽医, 2010, 42(5): 95-98.
[11]	Huang X, Xuan X, Suzuki H, et al. Characterization of Toxoplasma gondii SAG2 expressed in insect cells by recombinant baculovirus and evaluation of its diagnostic potential in an enzyme-linked immunosorbent assay[J].Clin Diagn Lab Immunol, 2002, 9(6): 1343-1347.
[12]	Parmley SF, Sgarlato GD, Mark J, et al. Expression, charac-terization, and serologic reactivity of recombinant surface antigen P22 of Toxoplasma gondii[J].J Clin Microbiol, 1992, 30(5): 1127-1133.
[13]	李首庆.弓形虫SAG1, GRA2单基因疫苗及SAG1-GRA2复合基因疫苗的免疫效果研究[D].山东大学, 2007.

血清稀释度Serum dilution		重组蛋白不同稀释度（/10 μg·ml^-1）的A₄₅₀值 Recombinant protein dilution （/10 μg·ml^-1）A₄₅₀
血清稀释度Serum dilution		1 ∶ 1	1 ∶ 2	1 ∶ 4	1 ∶ 8
弓形虫阳性血清Toxoplasma-positive serum	1 ∶ 50	1.037 9	0.809 8^a	0.716 4^a	0.639 7^a
	1 ∶ 100	0.857 6^b	0.730 6^ab	0.608 0^ab	0.514 4^ab
	1 ∶ 200	0.757 0^b	0.692 6^ab	0.574 6^ab	0.476 2^ab
	1 ∶ 400	0.719 8^b	0.682 6^ab	0.554 6^ab	0.472 4^ab
	1 ∶ 800	0.701 8^b	0.673 1^ab	0.554 4^ab	0.472 1^ab
阴性血清Negative serum	1 ∶ 50	0.074 7	0.082 3	0.085 7	0.070 6
	1 ∶ 100	0.082 0	0.073 3	0.080 5	0.087 3
	1 ∶ 200	0.078 9	0.097 3	0.083 0	0.072 9
	1 ∶ 400	0.096 2	0.089 4	0.091 5	0.092 7
	1 ∶ 800	0.086 2	0.080 0	0.083 4	0.083 9
