Prediction and identification of B cell epitopes of lactate dehydrogenase of Echinococcus granulosus

Abstract

Abstract:

Objective To predict and identify B cell epitopes of lactate dehydrogenase of Echinococcus granulosus(EgLDH), in order to advance the development of highly specific and sensitive diagnostic method for echinococcosis.Methods ESPript 3.0 online program and IEDB software was used to predict secondary structure, β-fold, Emini Surface Accessibility, Karplus & Schulz Flexibility, Kolaskar & Tongaonkar Antigenicity, Parker Hydrophilicity and Bepipred Linear Epitope of EgLDH.Based on the prediction, potential epitopes were synthesized in vitro to assess their diagnostic efficacy using ELISA.The sensitivity, specificity and cross-reactivity were evaluated using sera from patients with echinococcosis, cysticercosis and healthy participants.Cystic fluid antigen was the control.Results The predicted secondary structure of EgLDH was composed of 37.16% α-helix, 9.67% β-fold and 53.17% random coil, with four transmembrane domains.Seven potential B cell epitopes were predicted, of which four were synthesized, i.e.peptides PP-1（215-228）, PP-2 （189-200）, PP-4 （79-89） and PP-7 （21-33）, with a sensitivity of 52.9%（18/34）, 61.8%（21/34）, 82.3%（28/34） and 50.0%（17/34）, respectively, to sera from patients with echinococcosis.There were significant differences between PP-4 and PP-1, PP-2 as well as PP-7（χ² = 8.100, 5.143, 9.091, P < 0.05）.The sensitivity of cystic fluid antigen was 91.1% （31/34）, which was significantly different from those of PP-1, PP-2 and PP-7 （χ² = 9.600, 5.780, 10.530, P < 0.05）, but not PP-4 （χ² = 0.444, P > 0.05）.The specificity to normal serum was 100% （21/21）, 100% （21/21）, 95% （20/21） and 95% （20/21）, respectively, all comparable to that of cystic fluid antigen （95%, 20/21）.The cross-reactivity to cysticercosis was 0, 1/10, 2/10 and 2/10, respectively, while that of the cystic fluid antigen was 5/10.Conclusion The PP-4 epitope of EgLDH B-cell shows a high sensitivity and specificity to sera from patients with echinococcosis and may be a potential diagnostic antigen for hydatid disease.

Key words: Echinococcus granulosus, Lactate dehydrogenase, Epitopes, Prediction, Diagnosis

CLC Number:

R383.3

Shuai YAN, Ping YAN, Xiao-jin MO, Bin XU, Ting ZHANG, Wei HU, Ruo-ting ZHAN, Ping YE. Prediction and identification of B cell epitopes of lactate dehydrogenase of Echinococcus granulosus[J]. CHINESE JOURNAL OF PARASITOLOGY AND PARASITIC DISEASES, 2017, 35(6): 554-558.

Figures/Tables 3

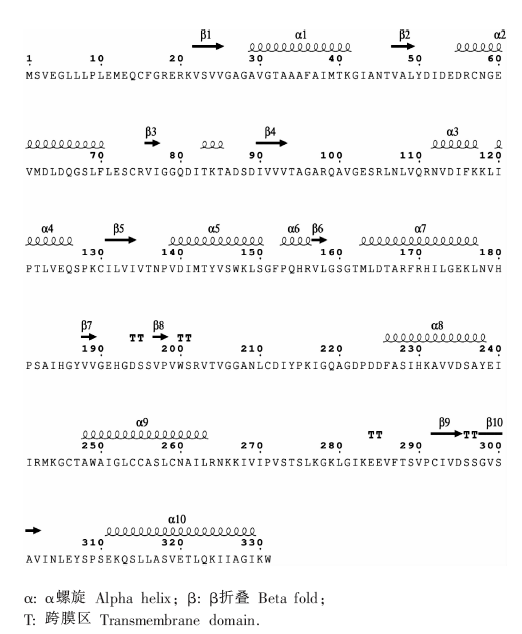

Fig.1

Table 1

Table 2

References 27

[1]	Hotez PJ, Ehrenberg JP.Escalating the global fight against neglected tropical diseases through interventions in the Asia Pacific region[J].Adv Parasitol, 2010, 72: 31-53.
[2]	陈新华, 温浩, 张朝霞, 等.全血金标免疫渗滤法快速检测棘球蚴病的现场应用[J].中国寄生虫学与寄生虫病杂志, 2005, 23(2): 90-92.
[3]	陈小林, 吴万贵, 米利古, 等.免疫学技术在棘球蚴病临床免疫诊断中的应用[J].现代生物医学进展, 2011, 11(13): 2568-2571.
[4]	Korber B, LaBute M, Yusim K.Immunoinformatics comes of age[J].PLoS Comput Biol, 2006, 2(6): 71.
[5]	李雪峰, 黄科生, 朱燕燕, 等.疟原虫乳酸脱氢酶Mab在疟疾诊断和疗效考核上的应用[J].中国热带医学, 2006, 6(10): 1743-1744,1749.
[6]	Lu G, Hu X, Peng Z, et al. Expression and characterization of lactate dehydrogenase from Schistosoma japonicum[J].Parasitol Res, 2006, 99(5): 593-596.
[7]	张颋, 陈英, 张俊瑞, 等.细粒棘球蚴病患者血清特异性IgG亚型抗体的检测[J].中国寄生虫学与寄生虫病杂志, 2015, 33(2): 122-125.
[8]	Robert X, Gouet P.Deciphering key features in protein structures with the new ENDscript server[J].Nucleic Acids Res, 2014, 42(Web Server issue): W320-W324.
[9]	Vita R, Overton JA, Greenbaum JA, et al. The immune epitope database (IEDB) 3.0[J].Nucleic Acids Res, 2015, 43(Database issue): D405-D412.
[10]	Chou PY, Fasman GD.Prediction of the secondary structure of proteins from their amino acid sequence[J].Adv Enzymol Relat Areas Mol Biol, 1978, 47: 45-148.
[11]	Emini EA, Hughes JV, Perlow DS, et al. Induction of hepatitis A virus-neutralizing antibody by a virus-specific synthetic peptide[J].J Virol, 1985, 55(3): 836-839.
[12]	Karplus PA, Schulz GE.Prediction of chain flexibility in proteins[J].Naturwissenschaften, 1985, 72(4): 212-213.
[13]	Kolaskar AS, Tongaonkar PC.A semi-empirical method for prediction of antigenic determinants on protein antigens[J].FEBS Lett, 1990, 276(1-2): 172-174.
[14]	Parker JMR, Guo D, Hodges RS.New hydrophilicity scale derived from high-performance liquid chromatography peptide retention data: correlation of predicted surface residues with antigenicity and x-ray-derived accessible sites[J].Biochemistry, 1986, 25(19): 5425-5432.
[15]	Larsen JE, Lund O, Nielsen M.Improved method for predicting linear B-cell epitopes[J].Immunome Res, 2006, 2: 2.
[16]	Haste Andersen P, Nielsen M, Lund O.Prediction of residues in discontinuous B-cell epitopes using protein 3D structures[J].Protein Sci, 2006, 15(11): 2558-2567.
[17]	Ponomarenko JV, Bourne PE.Antibody-protein interactions: benchmark datasets and prediction tools evaluation[J].BMC Struct Biol, 2007, 7(1): 64.
[18]	Lu G, Lu Y, Li L, et al. Identification and bioinformatics analysis of lactate dehydrogenase genes from Echinococcus granulosus[J].Asian Pac J Trop Med, 2010, 3(10): 757-761.
[19]	Gan W, Zhang Z, Lv G, et al. The topological structure and function of Echinococcus granulosus lactate dehydrogenase, a tegumental transmembrane protein[J].Mol Biochem Parasitol, 2012, 184(2): 109-117.
[20]	Lorenzo C, Ferreira HB, Monteiro KM, et al. Comparative analysis of the diagnostic performance of six major Echinococcus granulosus antigens assessed in a double-blind, randomized multicenter study[J].J Clin Microbiol, 2005, 43(6): 2764-2770.
[21]	Budke CM, Deplazes P, Torgerson PR.Global socioeconomic impact of cystic echinococcosis[J].Emerging Infect Dis, 2006, 12(2): 296-303.
[22]	丛培君.鸡堆型艾美尔球虫乳酸脱氢酶增强型核酸疫苗构建和免疫保护研究[D].哈尔滨: 东北农业大学, 2014.
[23]	吕刚.日本血吸虫乳酸脱氢酶的功能研究[D].广州: 中山大学, 2006.
[24]	吕刚, 胡旭初, 黄灿, 等.棉子酚、吡喹酮、蒿甲醚对重组日本血吸虫乳酸脱氢酶的作用[J].中国寄生虫学与寄生虫病杂志, 2007, 25(5): 401-405.
[25]	汪俊云, 包意芳, 杨玥涛, 等.恶性疟原虫乳酸脱氢酶特异性单克隆抗体的制备[J].中国寄生虫学与寄生虫病杂志, 2005, 23(4): 213-216.
[26]	吴英松, 雷腊梅, 李明.用乳酸脱氢酶为靶分子的免疫层析技术检测恶性疟原虫[J].第一军医大学学报, 2005, 25(7): 761-765.
[27]	孙莉, 李明, 吴英松, 等.间日疟原虫乳酸脱氢酶单克隆抗体的制备及其鉴定[J].广东医学, 2010, 31(8): 942-944.

多肽段Peptides	不同类型棘球蚴病患者血清敏感性/% Sensitivity of different types of echinococcosis patients serum /%			特异性/%Specificity/%	交叉反应性 Cross-reactivity
多肽段Peptides	囊型 Cystic echinococcosis	泡型 Alveolar echinococcosis	合计 Total	特异性/%Specificity/%	交叉反应性 Cross-reactivity
PP-1	58.8(10/17)	47.1(8/17)	52.9(18/34)	100(21/21)	0
PP-2	47.1(8/17)	76.5(13/17)	61.8(21/34)	100(21/21)	1/10
PP-4	76.5(13/17)	88.2(15/17)	82.3(28/34)^a	95(20/21)	2/10
PP-7	47.1(8/17)	52.9(9/17)	50.0(17/34)	95(20/21)	2/10
囊液抗原 Cystic fluid antigen	100 (17/17)	82.3(14/17)	91.1(31/34)	95(20/21)	5/10
