Selection and identification of aptamers against the circulating cathodic antigen of Schistosoma mansoni

doi:10.12140/j.issn.1000-7423.2025.04.008

Abstract

Abstract:

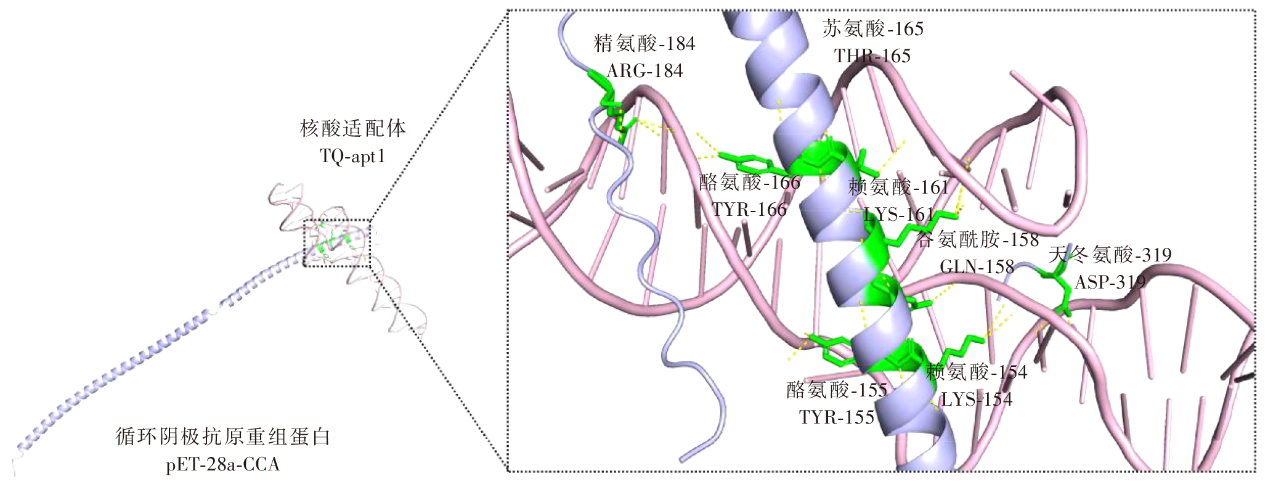

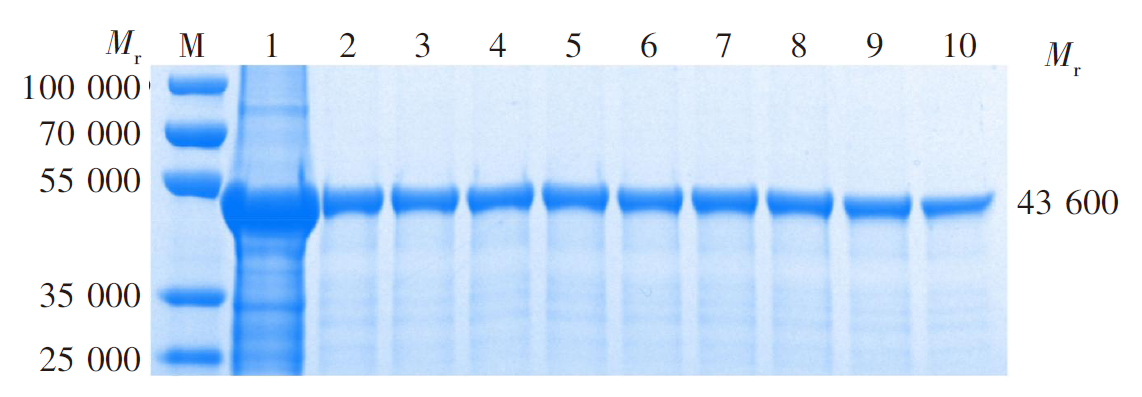

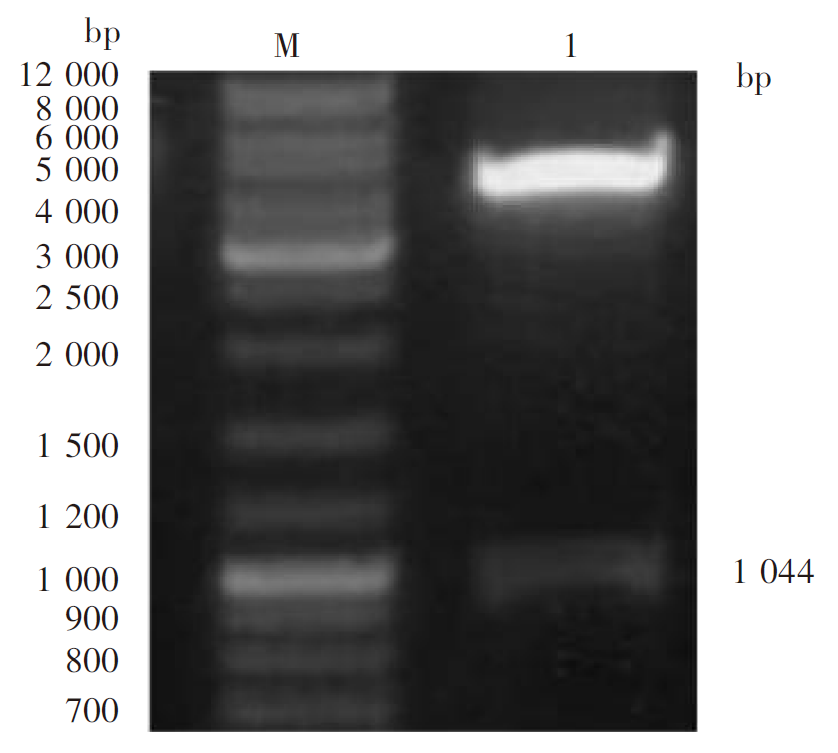

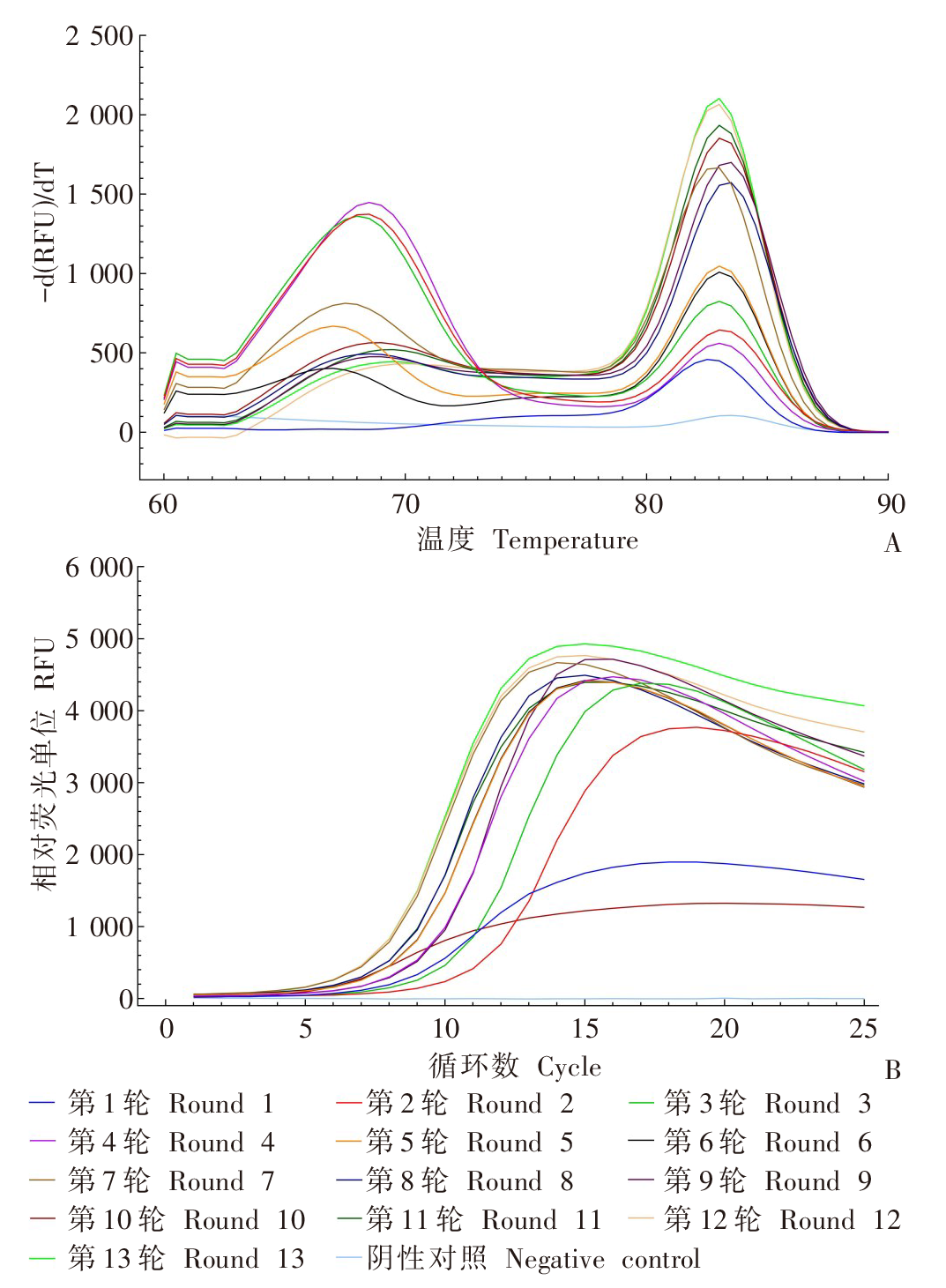

Objective To screen and identify the aptamer specifically targeting the circulating cathodic antigen (CCA) of Schistosoma mansoni. Methods The recombinant prokaryotic expression vector pET-28a-CCA was constructed, and the expression of pET-28a-CCA protein was induced and purified by Ni-NTA column. The expression characteristics of pET-28a-CCA were analyzed by sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE). Using pET-28a-CCA protein as the target, systematic evolution of ligands by exponential enrichment (SELEX) was performed. Quantitative real-time PCR was used to monitor and analyze each round of library enrichment. After multiple rounds of stringent selection, the obtained products were subjected to high-throughput sequencing analysis, bioinformatics analysis, and the characterization of binding affinity of candidate aptamers to the pET-28a-CCA protein using microscale thermophoresis (MST), followed by molecular docking. Results Double enzyme digestion and sequencing results confirmed that the pET-28a-CCA recombinant plasmid contained an approximately 1 044 bp CCA gene fragment. SDS-PAGE results demonstrated successful expression of the pET-28a-CCA protein, with a relative molecular mass (M_r) of approximately 43 600. The SELEX screening results showed that the library of the 13th screening round reached the best enrichment. Based on sequencing results, nine candidate aptamer sequences were selected. Among them, seven aptamers exhibited binding affinity to the pET-28a-CCA as determined by MST analysis. TQ-apt1 had the lowest Gibbs free energy (ΔG = -13.09 kcal/mol), the highest GC content (59.2%), the highest melting temperature (102.3 ℃), and the highest G-quadruplex score (15 points). TQ-apt1 had the highest affinity with pET-28a-CCA protein with a dissociation constant of 2.1 nmol/L. Conclusion In this study, aptamers targeting the pET-28a-CCA protein were successfully obtained through SELEX technology.

Key words: Schistosoma mansoni, Circulating cathodic antigen, Aptamers, Systematic evolution of ligands by exponential enrichment, Recombinant prokaryotic protein

CLC Number:

R383.2

TANG Qi, QIU Jiayin, LI Jiajia, ZHOU Xinjie, LV Chao, FENG Ting, XU Jing, QIN Zhiqiang. Selection and identification of aptamers against the circulating cathodic antigen of Schistosoma mansoni[J]. CHINESE JOURNAL OF PARASITOLOGY AND PARASITIC DISEASES, 2025, 43(4): 497-502.

Figures/Tables 5

Fig. 1

Fig. 2

Fig. 3

Table 1

Fig. 4

References 43

[1]	Lo NC, Bezerra FSM, Colley DG, et al. Review of 2022 WHO guidelines on the control and elimination of schistosomiasis[J]. Lancet Infect Dis, 2022, 22(11): e327.e335.
[2]	张利娟, 何君逸, 杨帆, 等. 2023年全国血吸虫病防治进展[J]. 中国血吸虫病防治杂志, 2024, 36(3): 221-227.
	Zhang LJ, He JY, Yang F, et al. Progress of schistosomiasis control in people’s republic of China in 2023[J]. Chin J Schisto Control, 2024, 36(3): 221-227. (in Chinese)
[3]	Ally O, Kanoi BN, Ochola L, et al. Schistosomiasis diagnosis: Challenges and opportunities for elimination[J]. PLoS Negl Trop Dis, 2024, 18(7): e0012282.
[4]	Tabios IKB, Sato MO, Tantengco OAG, et al. Diagnostic performance of parasitological, immunological, molecular, and ultrasonographic tests in diagnosing intestinal schistosomiasis in fieldworkers from endemic municipalities in the Philippines[J]. Front Immunol, 2022, 13: 899311.
[5]	Clark J, Moses A, Nankasi A, et al. Reconciling egg- and antigen-based estimates of Schistosoma mansoni clearance and reinfection: A modeling study[J]. Clin Infect Dis, 2022, 74(9): 1557-1563.
[6]	Langenberg MCC, Hoogerwerf MA, Koopman JPR, et al. A controlled human Schistosoma mansoni infection model to advance novel drugs, vaccines and diagnostics[J]. Nat Med, 2020, 26(3): 326-332.
[7]	Kildemoes AO, Veldhuizen T, Hilt ST, et al. Identification of a circulating carbohydrate antigen as a highly specific and sensitive target for schistosomiasis serology[J]. J Clin Microbiol, 2025, 63(2): e0100824.
[8]	Hoekstra PT, Madinga J, Lutumba P, et al. Diagnosis of schistosomiasis without a microscope: Evaluating circulating antigen (CCA, CAA) and DNA detection methods on banked samples of a community-based survey from DR Congo[J]. Trop Med Infect Dis, 2022, 7(10): 315.
[9]	van Dam GJ, Bogitsh BJ, van Zeyl RJ, et al. Schistosoma mansoni: in vitro and in vivo excretion of CAA and CCA by developing schistosomula and adult worms[J]. J Parasitol, 1996, 82(4): 557-564.
[10]	Abdeen HH, Attallah AF, El-Mohamady HI, et al. Schistosoma mansoni: The circulating cathodic antigen forms an abundant product of 41/42 kDa in the urine of infected patients[J]. Exp Parasitol, 1998, 90(3): 286-289.
[11]	Casacuberta-Partal M, van Lieshout L, van Diepen A, et al. Excretion patterns of Schistosoma mansoni antigens CCA and CAA by adult male and female worms, using a mouse model and ex vivo parasite cultures[J]. Parasitology, 2022, 149(3): 306-313.
[12]	de Jonge N, Kremsner PG, Krijger FW, et al. Detection of the schistosome circulating cathodic antigen by enzyme immunoassay using biotinylated monoclonal antibodies[J]. Trans R Soc Trop Med Hyg, 1990, 84(6): 815-818.
[13]	Kildemoes AO, Vennervald BJ, Tukahebwa EM, et al. Rapid clearance of Schistosoma mansoni circulating cathodic antigen after treatment shown by urine strip tests in a Ugandan fishing community - relevance for monitoring treatment efficacy and re-infection[J]. PLoS Negl Trop Dis, 2017, 11(11): e0006054.
[14]	van Lieshout L, Polderman AM, Visser LG, et al. Detection of the circulating antigens CAA and CCA in a group of Dutch travellers with acute schistosomiasis[J]. Trop Med Int Health, 1997, 2(6): 551-557.
[15]	Ji CL, Wei JY, Zhang L, et al. Aptamer-protein interactions: From regulation to biomolecular detection[J]. Chem Rev, 2023, 123(22): 12471-12506.
[16]	Yang LF, Ling M, Kacherovsky N, et al. Aptamers 101: Aptamer discovery and in vitro applications in biosensors and separations[J]. Chem Sci, 2023, 14(19): 4961-4978.
[17]	Zhang YY, Chen XH, Qiao Y, et al. DNA aptamer selected against esophageal squamous cell carcinoma for tissue imaging and targeted therapy with integrin β1 as a molecular target[J]. Anal Chem, 2022, 94(49): 17212-17222.
[18]	Sun X, Xie L, Qiu SY, et al. Elucidation of CKAP4-remodeled cell mechanics in driving metastasis of bladder cancer through aptamer-based target discovery[J]. Proc Natl Acad Sci USA, 2022, 119(16): e2110500119.
[19]	Li TQ, Liu XY, Qian HF, et al. Blocker-SELEX: A structure-guided strategy for developing inhibitory aptamers disrupting undruggable transcription factor interactions[J]. Nat Commun, 2024, 15(1): 6751.
[20]	Li YS, Tam WW, Yu YY, et al. The application of Aptamer in biomarker discovery[J]. Biomark Res, 2023, 11(1): 70.
[21]	Huang J, Chen XX, Fu XK, et al. Advances in aptamer-based biomarker discovery[J]. Front Cell Dev Biol, 2021, 9: 659760.
[22]	Manea I, Casian M, Hosu-Stancioiu O, et al. A review on magnetic beads-based SELEX technologies: Applications from small to large target molecules[J]. Anal Chim Acta, 2024, 1297: 342325.
[23]	Le TT, Benton DJ, Wrobel AG, et al. Development of high affinity broadly reactive aptamers for spike protein of multiple SARS-CoV-2 variants[J]. RSC Adv, 2023, 13(22): 15322-15326.
[24]	Yang Y, Yin YG, Wang S, et al. Simultaneous determination of Zearalenone and ochratoxin A based on microscale thermophoresis assay with a bifunctional aptamer[J]. Anal Chim Acta, 2021, 1155: 338345.
[25]	Siu RHP, Liu Y, Chan KHY, et al. Optimization of on-bead emulsion polymerase chain reaction based on single particle analysis[J]. Talanta, 2021, 221: 121593.
[26]	Liu XX, Lu Q, Chen SR, et al. Selection and identification of novel aptamers specific for clenbuterol based on ssDNA library immobilized SELEX and gold nanoparticles biosensor[J]. Molecules, 2018, 23(9): 2337.
[27]	Percze K, Harkai á, Mészáros T. A cost-effective approach for single-stranded DNA amplification using primer-blocked asymmetric PCR[J]. Curr Protoc, 2024, 4(9): e1125.
[28]	Verma V, Gupta A, Chaudhary VK. Emulsion PCR made easy[J]. Biotechniques, 2020, 69(1): 421-426.
[29]	Liu XX, Hou YY, Qin YL, et al. Selection of a novel DNA aptamer specific for 5-hydroxymethylfurfural using capture-SELEX[J]. Biosensors (Basel), 2023, 13(5): 564.
[30]	Kissmann AK, Bolotnikov G, Li RL, et al. IMPATIENT-qPCR: Monitoring SELEX success during in vitro aptamer evolution[J]. Appl Microbiol Biotechnol, 2024, 108(1): 284.
[31]	Kolm C, Cervenka I, Aschl UJ, et al. DNA aptamers against bacterial cells can be efficiently selected by a SELEX process using state-of-the art qPCR and ultra-deep sequencing[J]. Sci Rep, 2020, 10(1): 20917.
[32]	Zhu C, Feng ZR, Yan MM, et al. Matrix background screening of an ssDNA aptamer and its identification against lactopontin[J]. Int J Mol Sci, 2024, 25(21): 11832.
[33]	杨园媛, 徐斐, 吴秀秀. 适配体-靶标结合机制的计算模拟[J]. 中国生物化学与分子生物学报, 2024, 40(11): 1550-1562.
	Yang YY, Xu F, Wu XX. Computational simulation of aptamer-target binding mechanisms[J]. Chin J Biochem Mol Biol, 2024, 40(11): 1550-1562. (in Chinese)
[34]	焦美会, 刘家森, 姜骞, 等. 兔出血症病毒特异性核酸适配体的筛选[J]. 中国动物传染病学报, 2017, 25(2): 9-13.
	Jiao MH, Liu JS, Jiang Q, et al. Screening of specific aptamers for rabbit hemorrhagic disease virus[J]. Chin J Anim Infect Dis, 2017, 25(2): 9-13. (in Chinese)
[35]	Nao SC, Wu KJ, Wang WH, et al. Recent progress and development of G-quadruplex-based luminescent assays for ochratoxin a detection[J]. Front Chem, 2020, 8: 767.
[36]	Sauer M, Paeschke K. G-quadruplex unwinding helicases and their function in vivo[J]. Biochem Soc Trans, 2017, 45(5): 1173-1182.
[37]	Roxo C, Kotkowiak W, Pasternak A. G-quadruplex-forming aptamers-characteristics, applications, and perspectives[J]. Molecules, 2019, 24(20): 3781.
[38]	Zhu BC, He J, Xia XY, et al. Solution structure of a thrombin binding aptamer complex with a non-planar platinum(ii) compound[J]. Chem Sci, 2022, 13(28): 8371-8379.
[39]	Ku TH, Zhang TT, Luo H, et al. Nucleic acid aptamers: An emerging tool for biotechnology and biomedical sensing[J]. Sensors (Basel), 2015, 15(7): 16281-16313.
[40]	Zhou JH, Rossi J. Aptamers as targeted therapeutics: Current potential and challenges[J]. Nat Rev Drug Discov, 2017, 16(6): 440.
[41]	S? tefan G, Hosu O, De Wael K, et al. Aptamers in biomedicine: Selection strategies and recent advances[J]. Electrochim Acta, 2021, 376: 137994.
[42]	Yao J, Li SJ, Zhang LP, et al. Aptamer-antibody dual probes on single-walled carbon nanotube bridged dielectrode: Comparative analysis on human blood clotting factor[J]. Int J Biol Macromol, 2020, 151: 1133-1138.
[43]	Long YQ, Qin ZQ, Duan ML, et al. Screening and identification of DNA aptamers toward Schistosoma japonicum eggs via SELEX[J]. Sci Rep, 2016, 6: 24986.

名称Name	随机区域序列（5'→3'） Random region sequence (5'→3')	GC含量/% Content of GC/%	熔解温度/℃ Melting temperature/℃	G-quadruplex score G-四链体得分
TQ-apt1	TTCAGCACTCCACGCATAGCCGGACGAGGTGGAAACATCCGAGCTGGCGTC-TGAGCCCTATGCGTGCTACCGTGAA	59.20	102.3	15
TQ-apt2	TTCAGCACTCCACGCATAGCAACTGGCATCGGTAGATATGAGTGCTTGACC-TGTCGCCTATGCGTGCTACCGTGAA	52.60	98.4	0
TQ-apt3	TTCAGCACTCCACGCATAGCCAATACGCGGTAGGATGAGTGTGCTGATTAT-TTTGGCCTATGCGTGCTACCGTGAA	50.00	97.3	0
TQ-apt4	TTCAGCACTCCACGCATAGCCCGGTAGGAGTCCAGATTATGTGACTAGAGT-GCGCACCTATGCGTGCTACCGTGAA	53.90	97.7	0
TQ-apt5	TTCAGCACTCCACGCATAGCAAACGCGAGCGGTAGTTAGGAGTGCCTTGCT-GTTTGCCTATGCGTGCTACCGTGAA	53.90	99.1	0
TQ-apt6	TTCAGCACTCCACGCATAGCCCGACACCACGGTGAGGCTGATACAAATTTG-TCGTGCCTATGCGTGCTACCGTGAA	53.90	100.1	0
TQ-apt7	TTCAGCACTCCACGCATAGCCACAAGATACCGGTAGTGTTGAGTGCGTACC-TTTGGCCTATGCGTGCTACCGTGAA	52.60	97.7	0
TQ-apt8	TTCAGCACTCCACGCATAGCAGGCCTCATCCGGTAGTCCTAGAGTGCGATA-TGGAACCTATGCGTGCTACCGTGAA	53.90	97.8	0
TQ-apt9	TTCAGCACTCCACGCATAGCACGATCAAAATGTGCTGCCGTCCTCGGTTGA-GTCTGCCTATGCGTGCTACCGTGAA	53.90	100.5	0
